The Who’s PA: 1973–1974

Quadrophonic PA and Mavis desk whereabouts

For the Quadrophenia tour, a quadrophonic PA, involving speaker columns set at the rear of the hall, was used for the “storm and sea” sound effects from the backing tapes. According the Who Concert File, the additional speakers “provoked many complaints from the audience about their vision being blocked.” (For the 1974 tour of France, the quadrophonic PA was curtailed.)

The Heil-built PA of 1971–72 was still used, with the following additions:

  • Four Heil troughs (combination front- and rear-loaded cabinets with two Heil 12 woofer/tweeters in each)
  • Four 16-foot folded horns
  • Six Heil PFLs (ported, front-loaded cabinets) each with JBL 2205 1×15
  • An additional four Crown DC-300As

Audio tape playback

  • Scully 4-track studio deck (at stage-left, controlled by Bob Pridden), with a remote variable speed control taped to PT’s monitor stack.

Selected quotes

All quotes and references are copyright their original owners and are included for reference only.

From May 2006 Musician’s Friend article Bob Heil: A Living Live-Sound Legend interview:
MF: Is it true that Pete asked you to build a quad PA for the Quadrophenia tour?

BH: Well, after we finished Who’s Next, this would have been about ’73, he called me one day and said, “I need to talk to you, so come over here (to England).” So I got on a plane and went to London.

Pete said, “I’m hearing this thing with four guys, one in each corner. Do you think you could build a PA so we could move Roger’s voice around the arena?” I said, “Yeah, we’ll have to put some speakers in the back but we can do that.” He said, “You go build it, I’m gonna go write it.” He knew that we could make it sound good and that’s what we did.

From December 2008 Performing Musician interview with Bob Heil: The Night That Modern Live Sound Was Born:

The experience created a bond between Heil and Who guitarist Pete Townshend, who called on Heil to make manifest the quadraphonic sound system he envisioned for the live tour on the heels of the release of the Quadrophenia LP. “It worked,” says Heil. “We set up two 15-channel Mavis consoles together, put speakers in four corners and we were able to fly Roger’s [Daltrey] voice around the room. When we did Madison Square Garden with Quadrophenia, the PA was enormous. I think we had on each side six to eight 15-inch speaker bins, six to eight radial horns, and about a dozen tweeters. We could get about 110dB to 115dB on that stage before feedback. And the Who loved it, man, because it was loud, and they loved loud.”

From 2015 Sound on Sound interview with Bob Pridden:

Next came some of Bob Pridden’s favourite ever Who consoles, built by British-based manufacturer IES (International Entertainers Services), who the band had begun using for all their PA needs. The company’s head honcho Dave Hartstone came up with the innovative (albeit heavy-duty!) console.

“IES brought out their own mixer called a Mavis,” explains Pridden. “It was a fantastic mixer but it weighed a ton! It was really just like a Neve — not as good, but along those lines. We bought one of the first ones they built and used that and we ended up with two in the end, which we put together, and we used them for years. They were really good mixers. And that was the first step into real front-of-house desks. We used a Mavis mixer when we made the album Quadrophenia [1973], for mixing the cans in the studio so they could have their own four different mixes. We had various other mixers built for us in the old days when they first came out — modular systems — but they were just not really cutting the mustard because they were still in their early stages. You know, I remember one mixer we had made for us and it was a quadrophonic mixer and it had a three-way switch so you could switch each of the four channels to left, right or centre. They were on electric light switches so that’s how antiquated it all was! It worked quite well but it wasn’t really roadworthy. We ended up selling it to the Average White Band in the end. Later, we went to Martin Audio systems and, at first, we used a Neve as a sidecar with a Mavis and from there we went to using Midas, which I’m still using today.”

From December 2008 Performing Musician interview with Bob Heil:

Bob Heil continued to improve his sound system. He built a second crossover out of the console, giving the system stereo capability, and used fibreglass instead of wood for low-frequency cabinets to reduce resonance. His next try at a live sound FOH mixing console would help to design the Sunn Coliseum, a Vocalmaster on steroids that gave large clubs, small theatres and local touring bands a tool that vastly expanded what music could sound like and how much space it could fill. He built more systems, both renting them out and selling them. What was now Heil Sound ventured with UK-based IES Systems, who had developed the Mavis mixer, which Heil describes as the first truly modern FOH desk with a modular circuitry design and external power supply. “It was an amazing console, though only four were ever made — they weighed 300lbs each!” he says. The two companies standardised key interfaces of their systems, such as speaker connectors, so they could use each other’s gear on opposite continents.

Front-stage wedge monitors (1974)

The advent of true front-stage foldback as we know it today: wedge monitors placed at the front of the stage for vocal foldback appear regularly in 1974, with one on each side of the stage.

Bob Heil on The Who’s use of monitoring:

We actually were the first sound company to use monitors in a major way. Nobody had figured out how to make them work at high levels without feedback. Heil Sound was the first to do that — apparent in that monster array John Entwistle is standing beside at Madison Square … there was a mirror of that on Pete’s side!! Peter and Roger hated floor wedges … it hindered their jumping, running, etc. … so they were not in vogue with them, so I devised a way — through out-of-phased microphones, amplifiers, speakers, etc., to get high level from the sides.

When I left the road scene in 1977, they had to put up with SHOWCO’s wedges … lots of them, as they never could figure out how to get the level from the sides. So as you can see from some of the pictures, they stacked speakers in front of the stage like crazy to get the level that Pete needed — as he was pretty much gone in the hearing department after 4K.…

From May 2006 EQ Magazine interview with Bob Heil:

“We got into the monitor thing out of necessity,” Bob says. “Pete Townshend and Roger Daltrey really needed all this to happen, so we built them some massive systems. We started putting fiberglass in the speaker cabinets, because it wouldn’t resonate like plywood or the other materials people were using. We wanted a really dense material to work with, and that’s why we chose fiberglass — it gave us an edge up on the speakers themselves. But we had to do it in a big way. I remember when we did Madison Square Garden with Quadrophenia. We had more stuff on just the stage than most people had in their entire PA. It was enormous. I think we had, on each side, 6–8 15 bins, 6–8 radio horns, and probably about a dozen tweeters; we could get about 110–115dB on that stage before feedback. And The Who loved it, of course, because it was loud. And they were loud, if not the loudest.”

The feat of amassing a system of monitors had been overcome years before, but there were problems still plaguing the team, and the entire world of sound in general, as Bob remembers. “The monitor was always the big problem. Nobody had really been able to make the monitor work before: They fed back all the time. You would have a mic about three feet from the monitor while these guys were playing louder and louder; and the next thing you knew it was total feedback city, and it seemed like nobody could get it all happening the way it really needed to happen.”

The key, as Bob had learned much earlier on, lay in the realm of phasing. “Back in my ham radio days, around 1960, I had put up a monster antennae; 4 feet by 40 feet and hoisted 50 feet in the air. It was a monster antennae of 128 elements; different elements that all had to be phased. So I learned about phasing monitors through phasing antennae.” Little did Bob know that in 1960, playing with radio frequency, that something would occur that would change his, and our, lives not much later down the road.

“I had brought in these monitors and started thinking ‘wait a minute I can start playing with phasing’ . . . and I did. We would run the microphones out of phase from the monitors, something that nobody had been doing yet. Since they were out of phase from the mics and the front systems, we could get these things incredibly loud before they would feedback.” The key to the golden lock was phasing, as Bob relays to everyone he instructs. “That’s one of the things that Jerry Garcia was really in love with. Our monitors were really something; and we got those guys into doing all kinds of phasing tricks with the monitors and mics. As you know, a lack of phasing equals no sound; so it’s all very important — the placement of monitors, the types of microphones, and having it in the right phase or the wrong phase.”

From 2015 Sound on Sound interview with Bob Pridden:

Bob is famously credited with playing a key role in coming up with the design for wedge floor monitors. How did those first wedges come into fruition and how did they develop from there?

“Oh crikey, I don’t know how we came up with them!” he laughs. “They were really antique at the time though! They looked like rabbit hutches and that’s what I used to call them. They were just these boxes on the stage with wire grilles. They look a bit smarter now but they haven’t changed that much. They basically have better speakers now, maybe better horns, but they haven’t changed that much really. We didn’t use wedges with Bob Heil or Dave Hartstone. We only used side fills and that’s why everyone’s a little bit deaf, I think, because we had two lots of four, two in each corner. That setup gives you a great sound but we can’t use them anymore. They’re too loud, but it was undoubtedly the best sound we’ve ever had on stage — it was just there!”

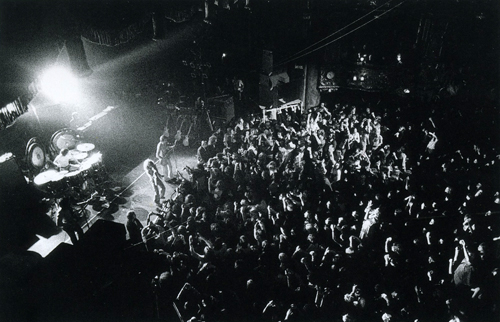

Ca. November 1973, the London Lyceum, with view of stage setup and PA stacks at stageside.

Click to view larger version. Ca. November 1973, the Lyceum, London, with top view of stage setup and PA stacks at stageside. Courtesy thewhothismonth.com.

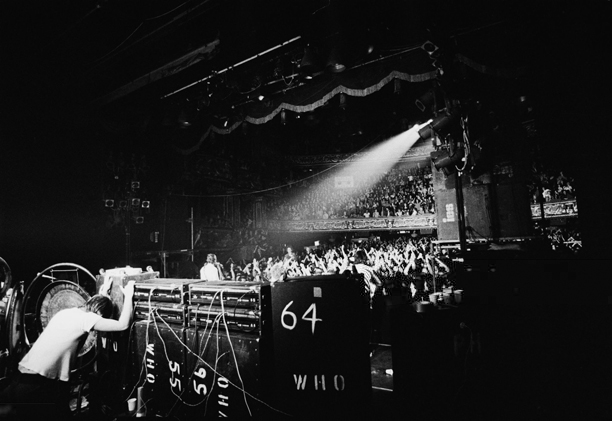

Ca. November 1973.

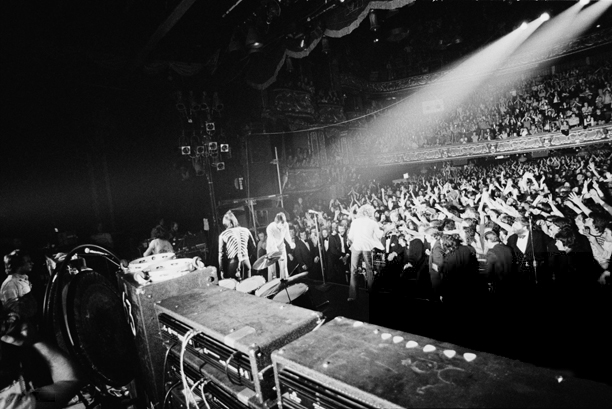

Click to view larger version. Ca. November 1973, the Lyceum, London, rear view of stage setup, with PA stacks at stage left, Bobby Pridden at stage left behind mixing desk, and rear (“Quadrophonic”) PA speaker stacks at back of hall.

Ca. November 1973.

Click to view larger version. Ca. November 1973, the Lyceum, London, rear view of stage setup, “IESPA stacks at stage right, and rear (“Quadrophonic”) PA speaker stacks at back of hall.

November 1973, at the Cow Palace, San Francisco, Heil/Sunn PA front-of-house bin stacks with white horn bells.

20 Nov. 1973, at the Cow Palace, San Francisco, Heil/Sunn PA front-of-house bin stacks with white horn bells.

25 November 1973, Dallas, full view of stage setup and front-of-house Heil/Sunn PA bin stacks with white horn bells. Photo: Tom Wright

25 Nov. 1973, Dallas, full view of stage setup and front-of-house Heil/Sunn PA bin stacks with white horn bells.

Ca. 1973, view of rear (“Quadrophonic”) PA speaker stacks at back of hall.

Ca. November 1973, view of rear (“Quadrophonic”) PA speaker stacks at back of hall.

Click to view larger version. December 1973, view of rear (“Quadrophonic”) PA speaker stacks at back of hall (next to Pete’s elbow).

Click to view larger version. 6 Dec., 1973, Capital Center in Largo, Maryland, view of rear (“Quadrophonic”) PA speaker stacks at back of hall (next to Pete’s elbow). From the Odds & Sods LP poster.

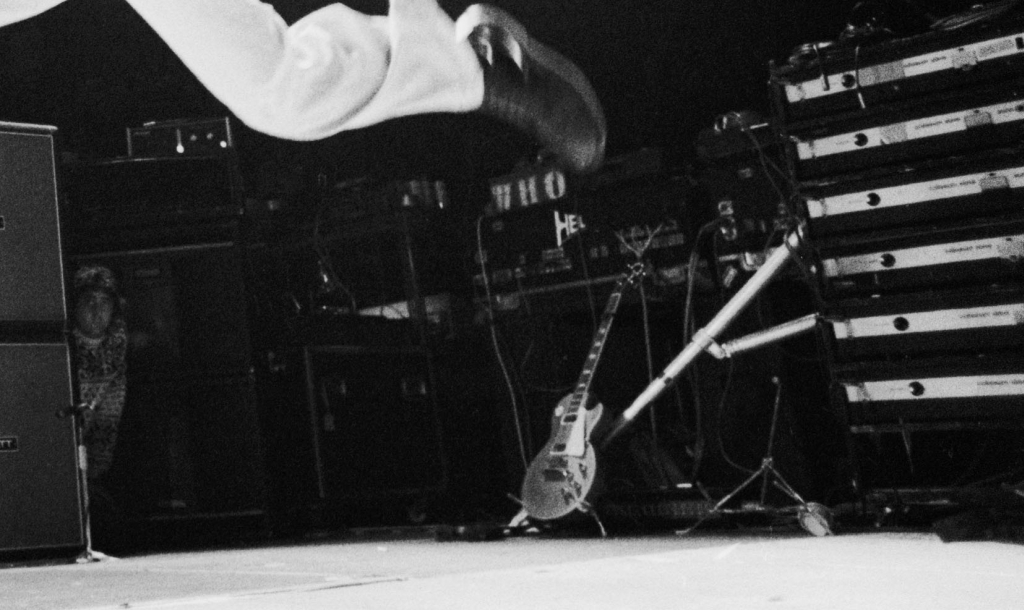

Ca. 1973, Bob Pridden hidden behind the Mavis (“Quadrophonic”) desk with Heil stencilling, and a rack of Sunn Coliseum Slave power amps in front of the lighting stand.

Click to view larger version. Ca. 1973, Bob Pridden hidden behind the Mavis (“Quadrophonic”) desk with Heil stencilling, and a rack of Sunn Coliseum Slave power amps in front of the lighting stand.

Mavis (“Quadrophonic”) mixer and rear surround PA speaker from back of hall setup, on display at the Rock and Roll Hall of Fame installation for Bob Heil.

Mavis (“Quadrophonic”) desk, and Heil rear surround PA speaker from back-of-hall setup (plus a Shure microphone), on display at the Rock and Roll Hall of Fame installation for Bob Heil. See Mavis Quadrophonic Desk for more info.

Heil PA bins with white horn bells. Photo courtesy Lee Phillips.

Heil PA bins with white horn bells. Photo courtesy Lee Phillips.

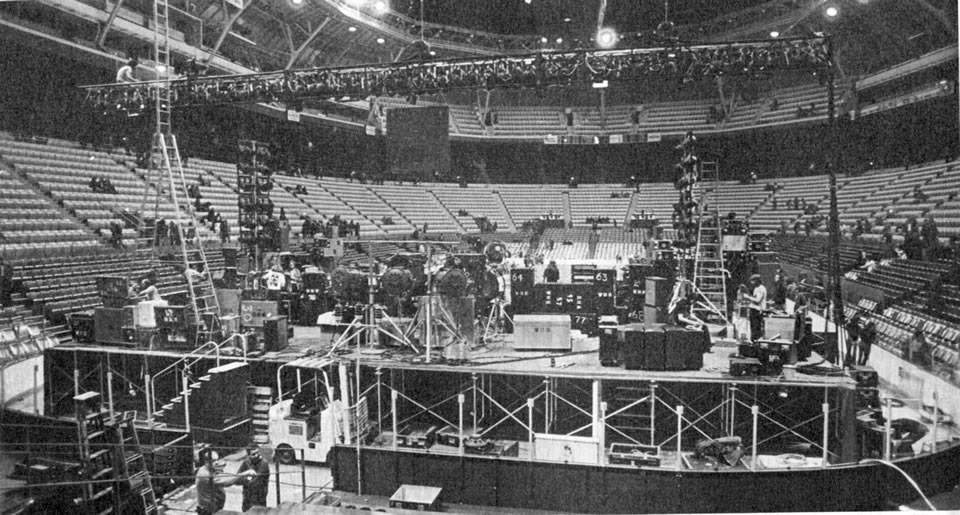

28 Nov. 1973, St. Louis, view from back of arena of (“Quadrophonic”) PA and stage setup.

Click to view larger version. 28 Nov. 1973, St. Louis, view from back of arena of “Quadrophonic” PA and stage setup.

December 1973, at Boston Garden, stage-right Heil/Sunn PA sidefill monitor stacks with dark horn bells.

Ca. December 1973, at Boston Garden, stage-right Heil/Sunn PA sidefill monitor stacks with dark horn bells.

Ca. 1973, stage-right Heil/Sunn PA sidefill monitor stacks with dark horn bells.

Ca. 1973, stage-right Heil/Sunn PA sidefill monitor stacks with dark horn bells.

14 June, 1974, at Madison Square Garden, John in front of Heil PA sidefill monitor stacks with white-painted horn bells. Photo courtesy Dave Kleinwaks.

14 June, 1974, at Madison Square Garden, John in front of Heil PA sidefill monitor stacks with white-painted horn bells. Photo courtesy Dave Kleinwaks.

Ca. 1974.

Ca. June 1974, Madison Square Garden.

22 Feb., 1974, Parc des Expositions, Nancy, France

Detail of the non-Quadrophonic PA by IES and Heil used on the 1974 tour of France.

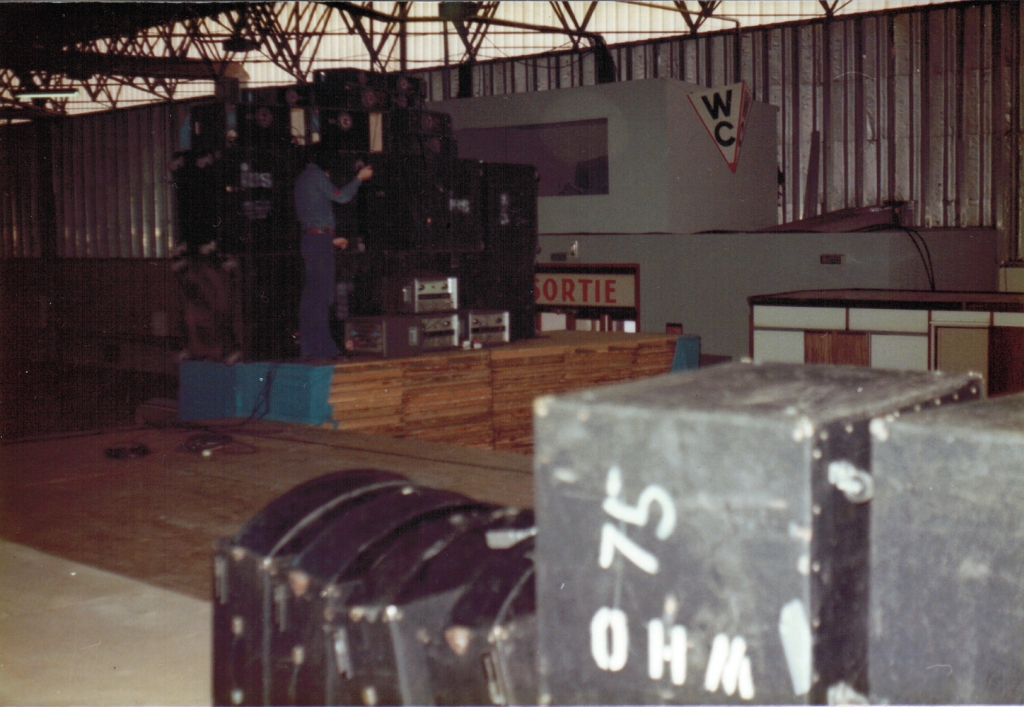

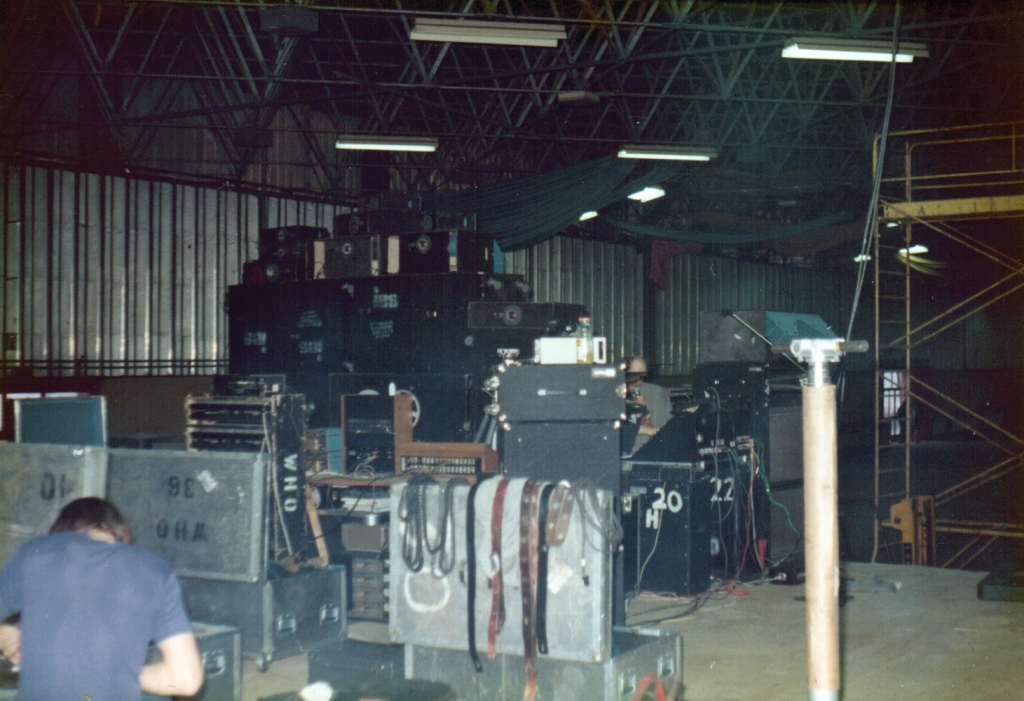

22 Feb. 1974, Parc des Expositions, Nancy, France, backstage during setup. PA by IES, and Bobby Pridden partially visible behind stage-left mixing desk. Via “A French Fan”.

Click to view larger version. 22 Feb., 1974, Parc des Expositions, Nancy, France, backstage during setup. PA by IES, and Bobby Pridden partially visible behind stage-left mixing desk.

22 Feb. 1974, Parc des Expositions, Nancy, France, backstage during setup. PA by IES, and Crown DC300s visible at stage right PA stack. Via “A French Fan”.

Click to view larger version. 22 Feb., 1974, Parc des Expositions, Nancy, France, backstage during setup. PA by IES, and Crown DC300s visible at stage right PA stack.

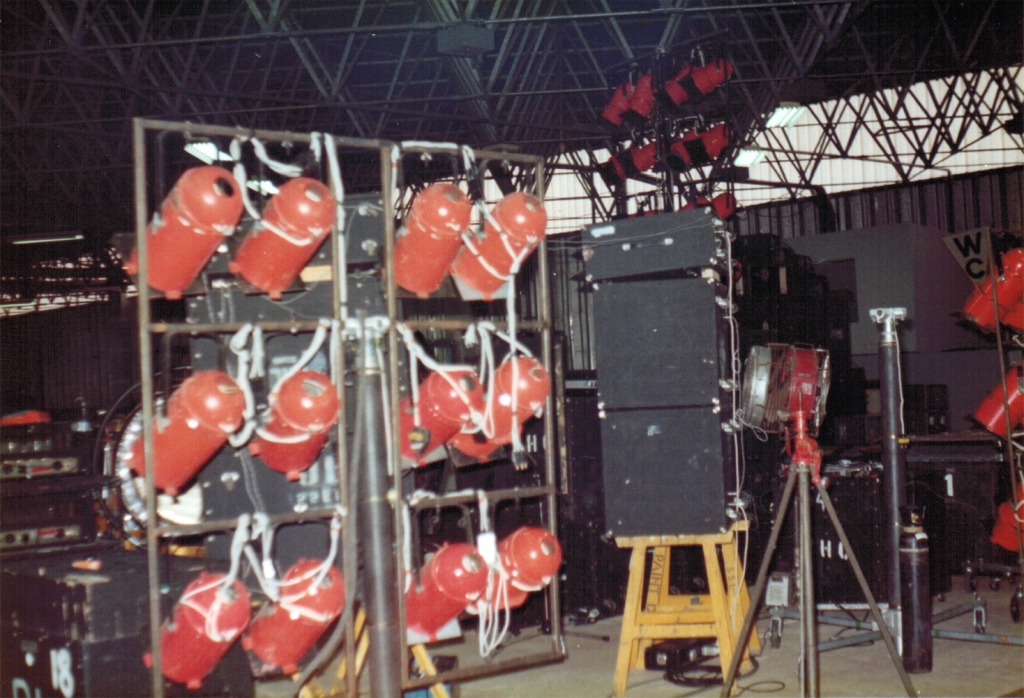

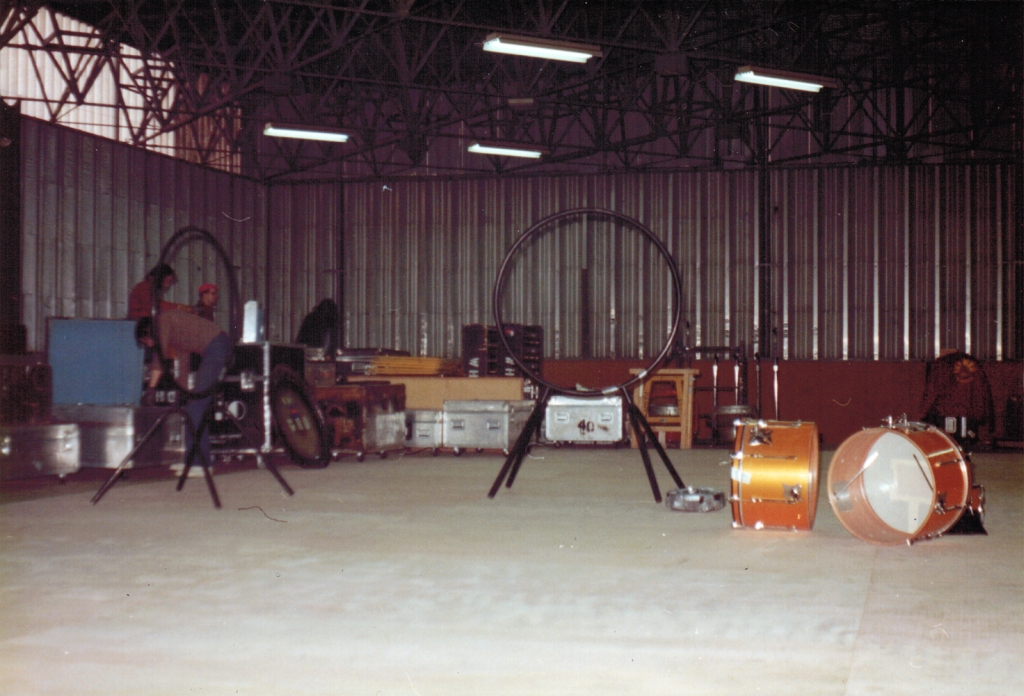

22 Feb. 1974, Parc des Expositions, Nancy, France, backstage during setup. Lighting rig and Heil stack for drums foldback. Via “A French Fan”.

Click to view larger version. 22 Feb., 1974, Parc des Expositions, Nancy, France, backstage during setup. Lighting rig and Heil stack for drums foldback.

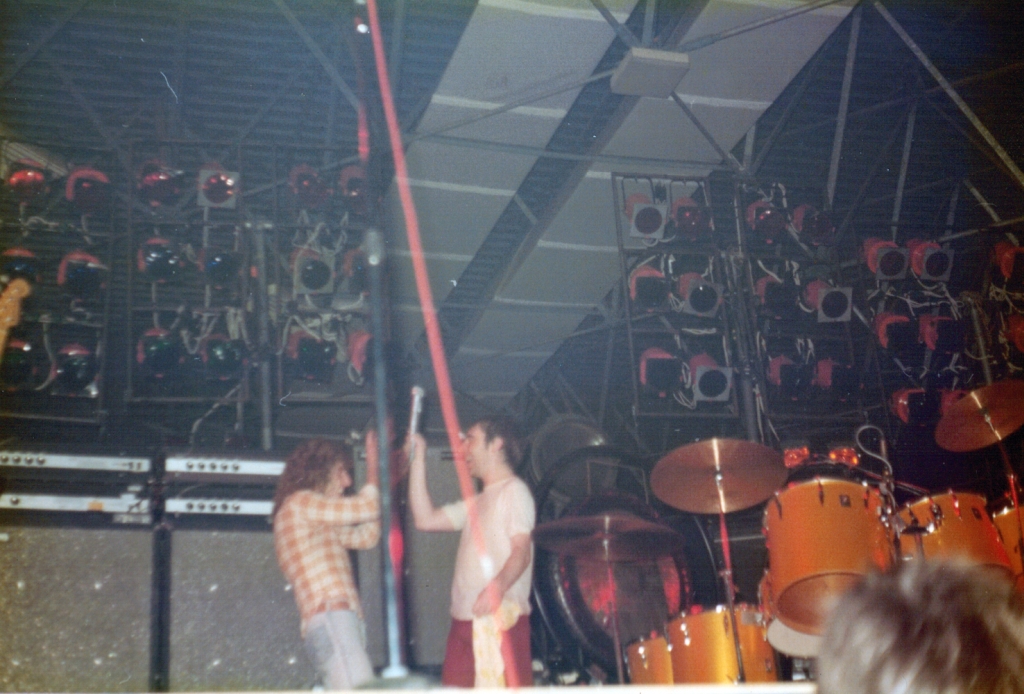

22 Feb. 1974, Parc des Expositions, Nancy, France, backstage during setup. Via “A French Fan”.

Click to view larger version. 22 Feb., 1974, Parc des Expositions, Nancy, France, backstage during setup.

22 Feb. 1974, Parc des Expositions, Nancy, France, lighting rig detail during the show. Via “A French Fan”.

Click to view larger version. 22 Feb., 1974, Parc des Expositions, Nancy, France, lighting rig detail during the show.

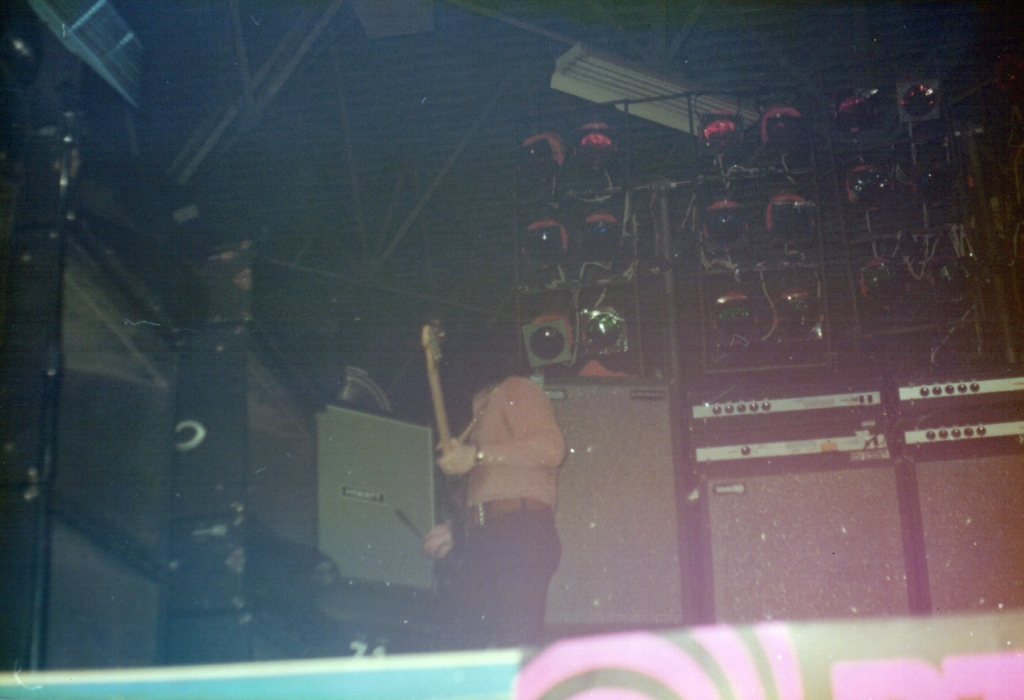

22 Feb. 1974, Parc des Expositions, Nancy, France, stage right lighting rig and sidefill foldback. Via “A French Fan”.

Click to view larger version. 22 Feb., 1974, Parc des Expositions, Nancy, France, stage right lighting rig and sidefill foldback.

22 Feb. 1974, Parc des Expositions, Nancy, France, lighting rig detail. Via “A French Fan”.

Click to view larger version. 22 Feb., 1974, Parc des Expositions, Nancy, France, lighting rig detail.
